< SMT주변설비 & 부품 < 부대장비<부품카운터 |
|
|
|
| |
 |
| |
 |
| |
| |
|
|
| No. |
 |
DC-200 |
|
DC-200A |
|
| Power
Supply |
 |
220V
AC 50/60Hz |
|
220V
AC 50/60Hz |
|
| Encoder |
|
200Pulse(MTL
Y상) |
|
200Pulse(MTL
Y상) |
|
| Count
Speed |
|
0
~ 5000 CPM(8 ~ 56mm) |
|
0
~ 5000 CPM(8 ~ 56mm) |
|
| Empty
Pocket Detector |
|
200Pulse(MTL
Y상) |
|
200Pulse(MTL
Y상) |
|
| Display |
|
대형
Segment(7 x 111mm) |
|
대형
Segment(7 x 111mm) |
|
| Dimentsion |
|
860(W)
x 305(D) x 360(H)mm |
|
860(W)
x 305(D) x 360(H)mm |
|
| Weight |
|
8.5Kg |
|
13Kg |
|
| Motor |
|
- |
|
25Watt |
|
|
|
|
| |
 |
| |
 |
|
| Applicable Devce |
|
ALL SMD Type Conponent |

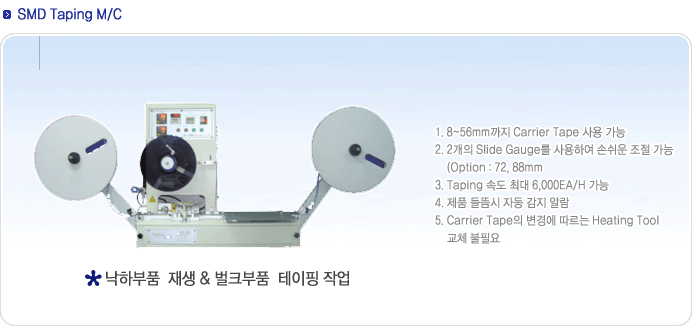

| Sealing Type |
|
Up-Down Method |
| Ambient Temperature Range For Assured Performance |
|
5℃ ~ 35℃(41 ~95℉) |
| Power Source |
|
220V AC, 50/60HZ (Optional 110V) |
| Compressed Air |
|
5Kg /㎠ at Oil Free Dry Air |
| Carrier Tape Width |
|
8 ~88mm |
| Taping Capacity |
|
Max. 6000ea/hour (System Speed) |
| Adjustable Sealing Time |
|
0.1 ~ 0.9sec |
| Adjustable Sealing Temp |
|
40℃~ 230℃ |
| Rail width Setting |
|
Hand Work type |
| Machine |
|
Drive Unit,Base, Reel Support Arm |
| Main Control |
|
PLC |
| Control Board |
|
Relays, Temp controller, Operation Switch, Sensor etc.. |
| Drive |
|
Index wheel type |
| Oustside |
|
2050(L) x 450(W) x 630(H)mm |
| Weight-Bare Taping M/C Only |
|
35Kg |
|
|
|
| |
| |
| |
| |
| |
|
| |
|
 |
|
 |
|
|
