Home < PCBA분리장비 < Router / GETECH


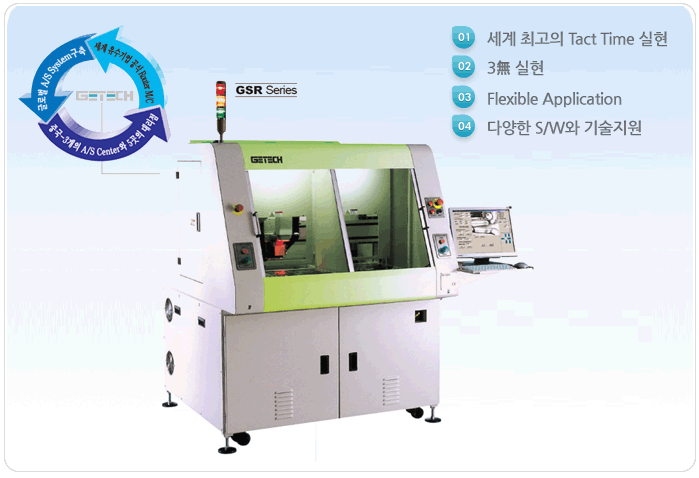

Spec / Model GSR-1200 GSR-1300D GS1380(1280)
Spindle 장착수 Single Dual Single

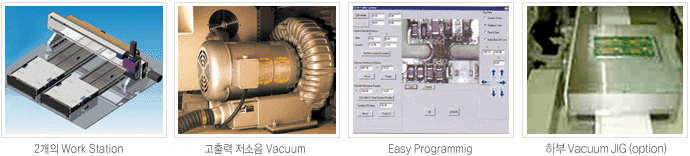

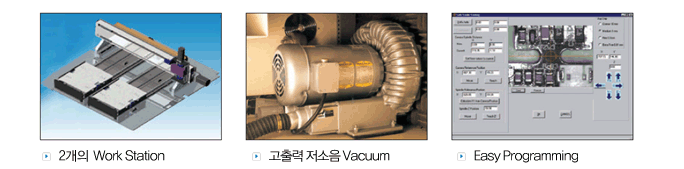

Work Station Two (ESR Model는 Single Station)
Vacuum System 상향 (Top) 하양(Vottom) 하향(상향)
Panel(PCB) Size 350 x 350 350 x 350 520 x 520
Manipulator Motor 4 Axis AC Brushless Servo Motors
Resolution / Repeatability ±0.01mm / ±0.02mm
Spindle Motor 0.15Kw(0.5Kw/Option) / 50,000rpm
Vacuum System 내장형 - 3Kw Rotary Vane Blower (4Kw)
Bacuum Filter 회장형 -3중 Filter 장착 (교체 시기 자동 알람 기능)
Noise Level <76dBa
Power Supply 380-415V, 3Phase, 20A(OPtions Available)
M/C Size 1300 x 1300 x 1700 (2070) 1620 x 1580 x 1700
※ Panel(PCB) Size가 620 x 620도 개발 (Gsr-1600)



Manipulator Motor 4 Axis AC Brushless Servo Motors
Resolution Repeatability ± 0.010mm / ±0.02mm
Board Position 2 Work Stations With Modular Fixture
Panel Size 350x350mm(L형 : 520x520mm)
Board Thickness 0.4~2.0mm
Spindle Motor 0.15Kw
Spindle Max. Speed 50,000rpm(60,000rpm)
Spindle Cooling Ambient Coolde(Water Cooled)
Vacuum Filter 3중 Vacuum Filter
Non Routing Speed 1000mm/sec
Routing Speed 100mm/sec
Noise Level <76 dBa
Power Supply 380-415V, 3PH, 20A
M/C Size 1300x1300x1700


Routing capability
Non routing speed 1400 mm/sec
Routing speed 100 mm/sec max depending on material & cutting quality
Repeatability <0.1 mm Straight lines, curves and interpolated profiles
Manipulator
Manipulator Motor 4 axis AC brushless servo motors
Manipulator Repeatability ±0.016mm
Resolution ±0.010mm
Configuration X, Y1, Y2 & Z-axis.

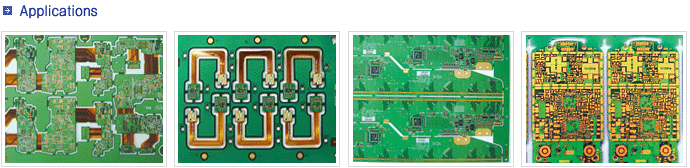

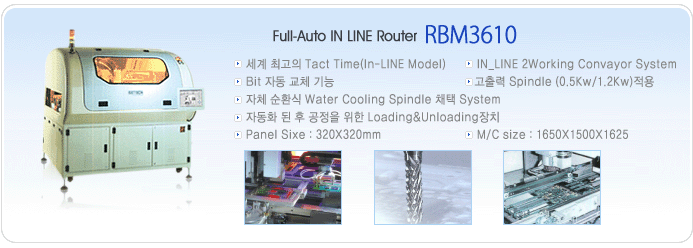

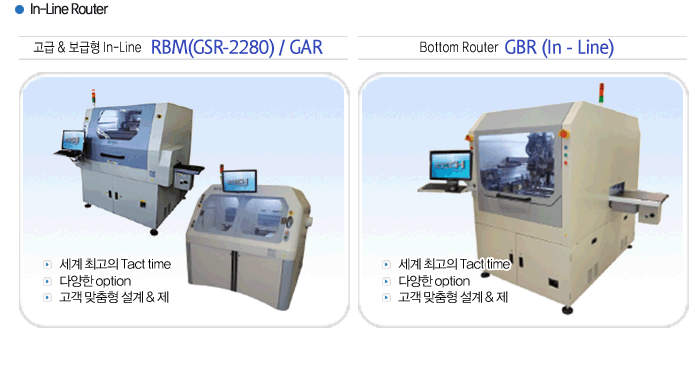

Panel loading
Loading / Unloading Inline loading from conveyor, unloading by with pick and place arm.
Panel Types All types with tooling holes,
Panel Size (mm) 320 x 320 (250 x 320)
Panel Thickness 0.5 - 2.0
Spindle Motor
Power   0.5kw (optional 1.2kW)
Max. speed   50,000rpm (optional 80,000)
Cooling   Water cool
Chucking   Internal pneumatic collet, manual tool change
Router bit   Shank size 3.175mm (1/8 “)
Vacuum
Power   4 kW rotary vane with programmable Relief valve
Filtration   3 stage disposable industrial vacuum filter bag
Utilities
Power supply   415v, 3 phase, 20 amps, 50 Hz, (options available)
Air supply   6 - 8 bars, < 4L/min
