냉장고 & 현장 설치

  R7(7/8inch reel) R13(13/15inch reel)

Width

 Length

Openning

Capacity

Openning

Capacity
455mm

910mm

16mm

82

 54mm 13
  1220mm

16mm

 112 54mm 18
사용용도에 따라 선반 단수 및 선반 type 변경가능합니다.

    40W(650 X 560mm frame) 50W(7360 X 736mm frame)
  openning : 35mm   openning : 45mm

Level

 Capacity

Height

Capacity

Height
1-level

24ea

900mm

19ea

 1200mm
2-level 48ea

1500mm

 38ea 1800mm
3-level   72ea   2000mm

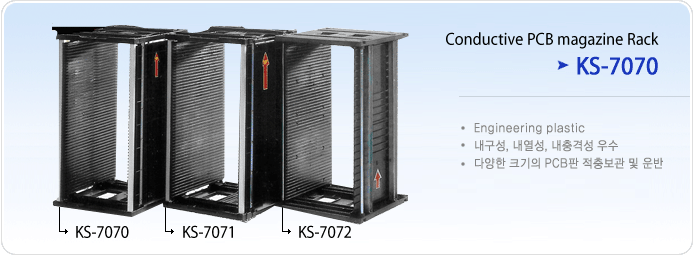

TYPE KS-7070 KS-7071 KS-7072
Size
(M/M)		 51PCD 355(L) X 318(W) X 580(H) 359(L) X 317(W) X 580(H)
(PANASERT TYPE)		 353(L)X318(W) X5 70(H)
(SL TYPE)
50PCS 355(L) X 318(W) X 570(H) 359(L) X 317(W) X 570(H)
(TDK TYPE)
Adjustable PCB
Standard(MM)		 Max 355(L) X 263(W) 258(W) X 330(L) 320(L) X 255(W)
Min 10(L) X 50(W) 50(W) X 10(L)
Pitch(M/M) 10 10 10
Pitch Guide(PCS) 5 3 3
Availability(PCS) 51 51 50
50 50
Resistivity(Ohm/sq)
Material Conductive Engineering Plastic
Weight(Kg) 5.8 4.8 6.3
