ITEMS HLX8100 HLX8200
Dimension(LxWxH)   991x2185x1830mm
  991x2185x1830mm
Weight   1361kg/3000lbs
  1588kg/3500lbs
Feeder Capacity   192x8mm
  128x8mm
Pick+place heads or modules   4
  8
Component alignment system   Cognex SMD-4 vision with PatMax technology
  Congnex SMD-4vision with PatMax technology
Smallest component   0201(1005)
  0201(1005)
Maximum speed   11'250cph
  22'000cph
PCB size   55-460mm
ITEMS

FLX2010 -L

FLX2010V -L FLX2010C/ -L
Dimensions(LxWxH)   1220x1220x2050mm
Weight   300kg/ 655lb
  300kg/ 655lb   350kg/ 771lb
Feeder Capacity(8mm)   190/310
  180/300   100/160
Pick+place heads or modules   1
  1   1
Component alignment system

Cyberoptics Laser

  Cyberoptics Laser ,
Cognex SMD4 vision
  Cyberop tics Laser ,
Cognex SMD4 vision
Smallest component   0420
  0201   0402
Maximem speed   5'000cph
  5'000cph   5'000cph
PCB size   25x25 -450x350
  50x50 -400x300   25x25 -750x650

구분 FLX2020(V) FLX2020(V)-L FLX2030(V) FLX2030(V)-L
PCB Size(Max)   400 x 300 400 x 600 400 x 300 400 x 600
  (700 x 600) (700 x 600)
정착가능부품   0402~33x33mm 0201~33x33mm 0402~33x33mm 0201~33x33mm
  (L :50 x 50mm) (L :50 x 50mm)
Heads   2 2 3 3
Comonents alignment system   Cyberoptics Laser + Cognex SMD4 Vision (V)

Speed Chip   10,000 CPH 15,000 CPH
Speed QFP   8,400 CPH 12,600 CPH
Automatics Fiducial recognition   PCB Fiducials and local fiducials

Placement Accuracy   <80μm@cpk 1.33 <40μm@cpk 1.33 <80μm@cpk 1.33 <40μm@cpk 1.33
  <120μm@cpk 2.0 <60μm@cpk 2.0 <120μm@cpk 2.0 <60μm@cpk 2.0

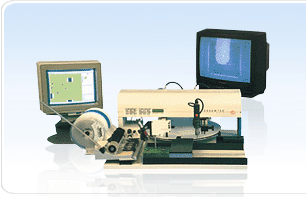

ITEMS CSM7000-PLUS
Dimension(LxWxH)
  800x800x1600mm
Weight table top   90kg/198 lbs
with stand   200kg/441lbs
Feeder Capacity   100x8mm
Pick+Place heads   1
Compenent alignment system   Cyberoptics Laser
Smallest component   0420
Maximum speed   4000 cph
PCB size   50x50-380x250
