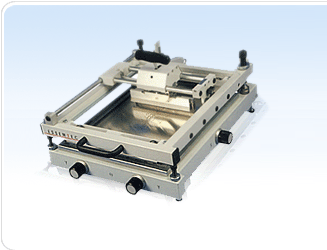

ITEMS SPOO2 SP002 - L
Overall DIMENSIONS (WxLxH)   500x700x250mm
  700x800x350mm
Weight Munual Models   25Kg(55lbs)
  33kg(73lbs)
Accuracy Of Table Adjustment   x/y : +/-0.02mm(0.008)
Frame Size Standard (Adjustable holder/top screw)   from 102x102mm
up to 305x432mm
  178x178mm
up tp 550x600mm
Max. PCB Size (Print Table size)(W x L)
  300x330mm
  400x410mm
ITEMS SPOO3
Dimension (WxLxH)   700x800x400mm
Weight   55kg
Max. Print area   400x375mm
Frame siz   585x585mm

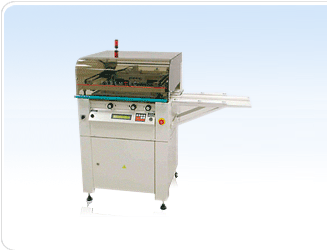

ITEMS

SP200-AV

SP200-V SP200
Dimensions
(WxLxH)
  1450x810x1650mm
  1450x810x1655mm   1450x810x1270mm
Weight   200kg(441lb)
  228kg(503lb)   160kg(474lb)
Vision   1b/w Cameras
  2b/w Cameras   none
PCB Alignment   Automatic
  Semiautomatioc   Manual
Accuracy

+/- 15 ㎛

  +/- 20 ㎛   +/- 20 ㎛
Max.Print Frame Size   600x600mm
  585x585mm   585x585mm
Max.Printing Area   400x360mm
  400x360mm   400x360mm

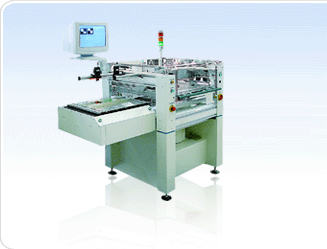

ITEMS SP500
Dimension
  1450x950x1270mm
Weight   341kg
Printing Speed   from10-130mm/see(0.4-5/s)
Accuracy Of Adjustment   25 ㎛
Frame Size   736x736mm
PCB Size   up to 500x500mm
