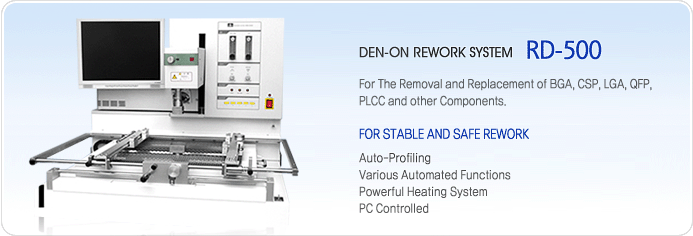

Home < SMT주변설비 & 부품 < Rework장비<High tech 고기능 Rework M/C



Maximum Board Size 500 x 600mm
Maxumum Device Size 50 x 50 mm
Placement Accuracy ±0.025mm
Top Local Heater 700 Watt Hot Air
Bottom Local Heater 700 Watt Hot Air
Bottom Area Heaters 4 x 400 Watt IR Rod Type
Control Unit PC Based. Windows ME or XP
Overall Dimensions 770 (W) x 755 (D) x 670 (H)
Weight 78 Kilograms
Air Requirements 60 Liters/min, 1-10 kgf/cm2(0.1-1.0 MPa)
Electrical Requirements 200-230 VAC, 50/60Hz, 3000Watt

Options :
1. Special table with a cabinet for the computer and a drawer for the mouse and keyboard.
2. Pump to provide air if compressed air is not locally available.
